Isolated Adapters — GE1950I-4315

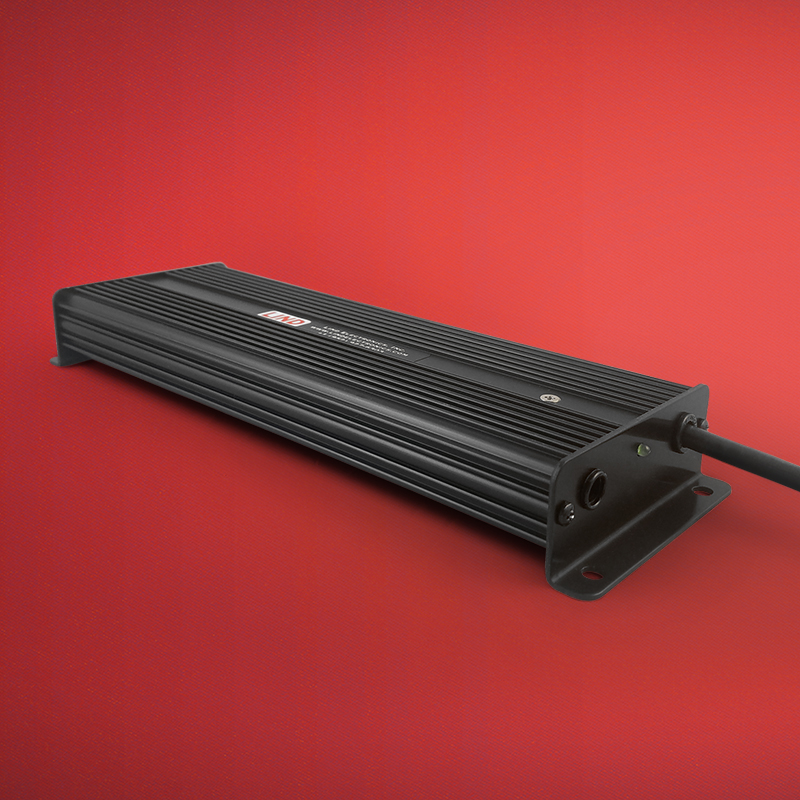

The Lind GE1950I-4315 DC/DC Power Adapter is designed to power your Getac-compatible laptop computer and to charge its internal battery from an 12-32 VDC power source. The adapter supplies current and voltage levels as required by the laptop.

– Isolated
– Bare Wire 72″ Input Cable
– Kycon 4 pin 36″ Output Cable
– 5.5×2.5 36″ Output Cable
– Low Input Voltage Disconnect
– High Input Voltage Disconnect
– Output Short Circuit Protection
– Output Overcurrent Protection
– Internal Over Temperature Protection

Compatibility

GETAC V100

GETAC V100G4

GETAC V100M

GETAC V100X

GETAC X500

GETAC X500G2

Technical information

Input Voltage:
12-32 VDC
Output Voltage:
19 VDC
Output Current:
5 amps
Input 1 Connector 1:
S/T
Input 1 Connector 2:
S/T
Output 1 Connector 1:
2.1mm
Output 1 Connector 2:
Kycon KPPX-4P
Output 2 Connector 1:
2.1mm
Output 2 Connector 2:
2.5mm .500” Long
Input 1 Length:
72 Inches
Output 1 Length:
36 Inches
Output 2 Length:
36 Inches
Size:
9.2″ x 3.0″ x 1.2″
Weight:
2 lbs
