Getac B360 Docking Station

Getac B360 Docking Station

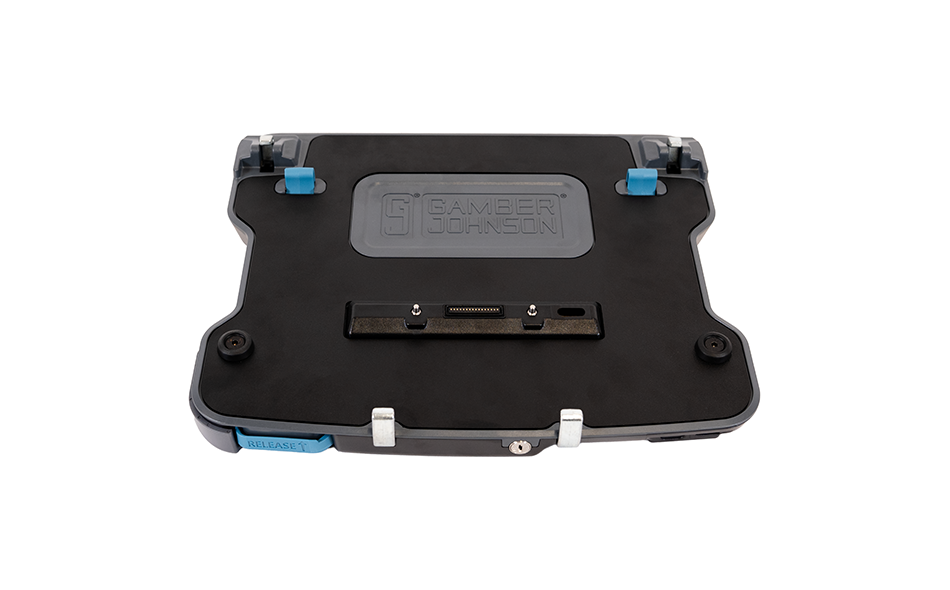

B360 Laptop Docking Station

Gamber-Johnson’s B360 laptop docking station is designed for the
Getac B360 rugged computer and the Getac B360 Pro with the
high capacity battery and factory installed expansion capability. The
B360 docking station features a convenient front-facing docking
release latch making it simple to dock/release the computer without
reaching.

Port replicator:

  • Getac Certified Electronics
  • USB-A 2.0 Front Facing (1)
  • USB-C 2.0 Front Facing (1)
  • USB-A 2.0 (1) 4 Pin Rear-Facing
  • Power Input 19Vdc
  • USB-A 3.0 (3) – 9 Pin Rear- Facing (900mA)
  • RS232 Serial (1)
  • Ethernet (2) RJ45
  • VGA (1) D-Sub 9 Pin
  • HDMI (1) 19 Pin

Features:

• Getac Certified electronics
• Floating docking connector (steel pins)
• Reliable connection in rugged environments
• Front corner release latch
• Easy computer removal via latch
• Full access to buttons & ports (docked)
• Rear-facing I/O with cable management |
• Operating Temp: -20°C to 50°C
• Storage Temp: -40°C to 85°C
• Automotive power adapter available |

Weight:

4.85 lbs
2.2 kg

Height:

2.25 in
5.72 cm

Depth:

11.5 in
29.21 cm

Width:

14 in
35.56 cm

Certificates & Testing:

  • Getac Certified
  • Vibration Tested: MIL-STD
    810G Operational/Non-
    Operational
  • Shock Crash Hazard: SAE
    J1455; Mechanical Shock: 40G
  • Cycle Test: Latch, Lock, and
    Docking Connector – 30,000
    Cycles
  • Environmental: Thermal
    Shock; High/Low Temperature
  • Operational & Storage
    FCC, CE, E-Mark, RoHS
    Certified
