Shutdown Timer — LPT1230-052

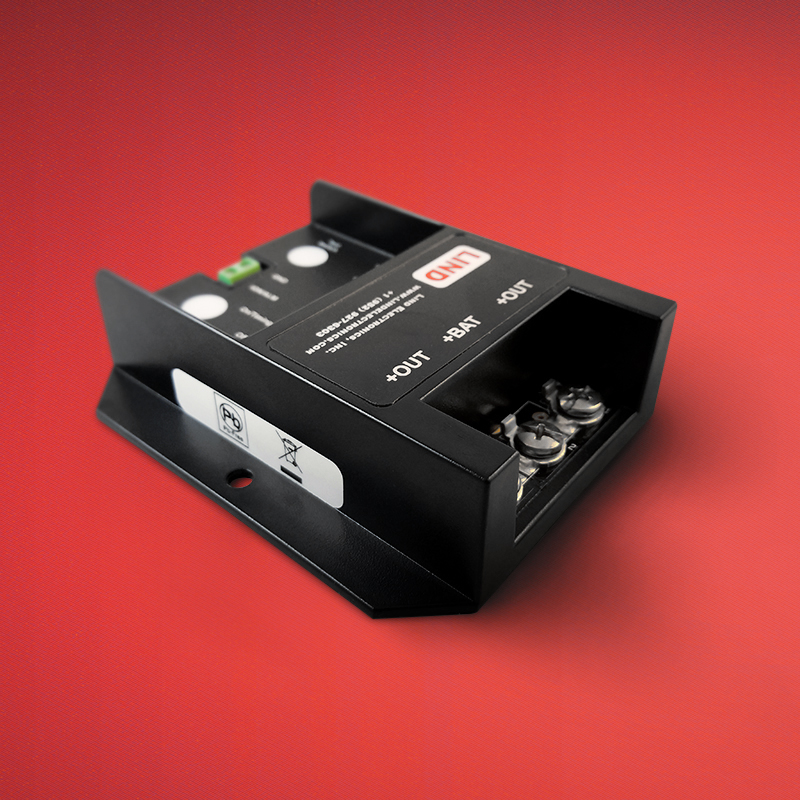

The Lind LPT1230-052 Low Profile Shutdown Timer protects your vehicle’s battery from over-discharge and equipment from low voltage and high voltage damage. This device turns off electrical loads at a preset time after the car engine is shut down. This timer provides the same protective functions as Lind’s standard Shutdown Timers but comes with a reduced height profile for installation into more compact areas.

– 11-16 VDC
– More compact design via reduced height profile
– Adjustable shut down delay time (from 5 seconds to 4 hours, factory set to 2 hours)
– Low voltage shut down at 10.5 Vdc
– High voltage shut down at 18 Vdc with auto reset
– Loads up to 30 amps

Technical information

Input Voltage:
11-16 VDC
Output Voltage:
12 VDC
Output Current:
3 amps
0.5 lbs
