AK-39

Rugged Wearable Keyboard

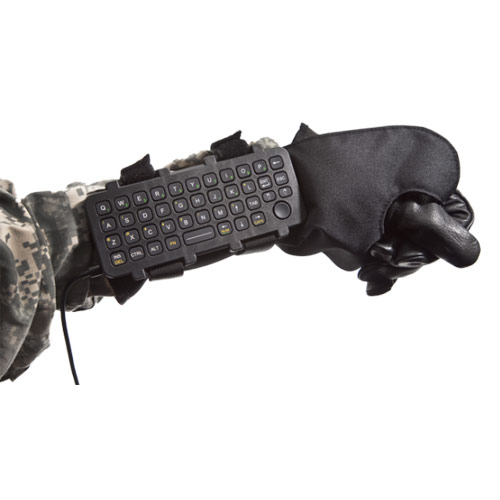

iKey’s rugged AK-39 keyboard is designed to be worn on the arm, providing a simple, compact data-input solution that does not restrict the user’s arm movements. It is designed to meet MIL-461 standards and is intended for use in very harsh electro magnetic interference (EMI) environments. The AK-39’s small-footprint design features essential components for military and public safety applications, including an integrated Force Sensing Resistor (FSR) pointing device with left- and right-click functionality. The AK-39 also features six levels (including off) of adjustable green LED backlighting that is also available in a night vision (NVIS) compatible configuration. Designed with gloved users in mind, the AK-39’s snap-on faceplate eliminates accidental key strokes and can be easily removed to clean the pad.

Features:
Integrated pointing device
Optional NVIS Compliant – Green B backlighting
USB cable configuration
Wearable design
Green Backlight
NumLock Access
Snap-On Faceplate
High EMI Standards

ADDITIONAL SPECIFICATIONS

CERTIFICATIONS UL60950, NEMA 4X, IP68
SHOCK 3 x 11 ms pulses of 50g on each of 3 axis
CABLE LENGTH: 5.4′ straight (1.6 m) DESIGN: Single cable USB
KEY SWITCH MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. ACTUATION FORCE: 8.11 oz +/- 1.06 oz (230 g +/- 30 g) FEEDBACK: Tactile with Mechanical Snap
VIBRATION POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours
POWER USB: 190 mA@5V (from CPU port)
COMPATABILITY USB: All Windows and Macintosh OS
TEMPERATURE RANGE STORAGE: -40C to +75C (-40F to 167F) OPERATING: – 40C to +80C (-40F to 176F)
WEIGHT 0.50 lbs +/- 0.10 lbs (0.23 kg +/-0.05 kg)
WARRANTY 1 Year Limited Warranty
HUMIDITY 100% Humidity Resistant
DIMENSIONS 6.65″ x 3.06″ x 0.81″ (w-h-d) 168.9mm x 77.7mm x 20.6mm
MODEL NUMBERS AK-39-USB
