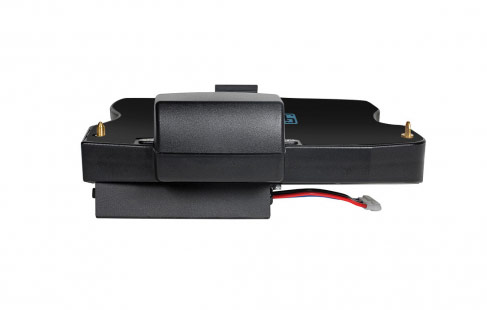

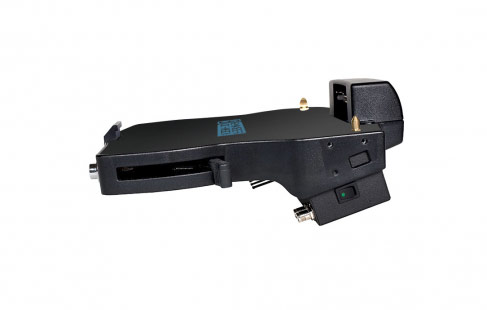

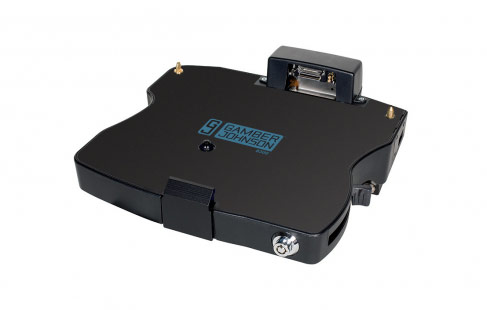

Getac B300 Docking Station (Dual RF)

Item #7160-0526-02

The Docking Station for Getac B300 with internal power supply – Dual RF (TNC) has features like an easy-to-activate side docking handle; one-danded docking mechanism, and ergonomically designed with a smaller footprint. All Gamber-Johnson docking stations come with a standard key lock for added security.

Antenna pass-through:

Dual RF (TNC)

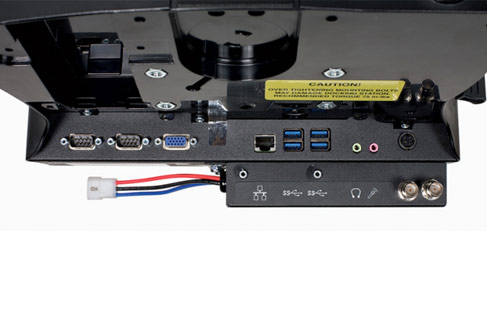

Port replicator:

Serial (2) D-sub 9 pin
USB 3.0 (4) 9 pin
Headphones / speakers – stereo phono jack
Alternate DC power input
VGA – D-sub 15 pin
Microphone – mono phono jack
Ethernet RJ45

Power supply:

Yes – includes internal power supply

Weight:

5.20 lbs. / 2.36 kg

Dimensions :

Height: 4.90″ / 12.5 cm
Width: 12.40″ / 31.5 cm
Depth: 12.30″ / 31.2 cm

Features:

  • Designed using MIL-STD-810G test procedures and complies with FCC Class A standards

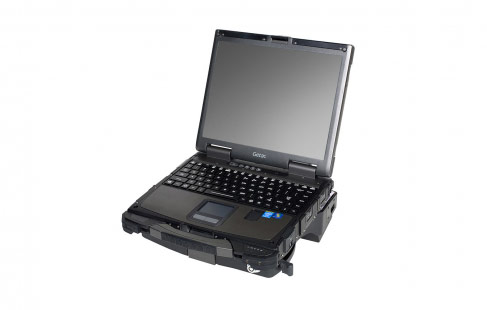

  • Designed for the Getac B300 computer
  • Internal/protected circuit board and power supply protect against dirt and dust
  • Keyed alike lock, push button key lock releases docking connector
  • Simple, one-handed, docking mechanism:
    • Pull side handle forward to dock
    • Unlock the key button to release and undock computer
  • Brass locating pins for precise computer placement
  • Floating docking connector for reliable docking connection
  • Interlocking mechanism protects against connector damage & prevents engagement until properly mounted
  • Forward facing ports for low mounting capability, minimal cable strain and minimal swivel resistance
  • Power switch with LED light and optional by-pass capability:
    • Green LED indicates power to the docking station
  • USB 3.0 compliant
  • Gamber-Johnson mounting hole pattern
  • 3 year limited warranty
  • Optional 4 and 5 year extended warranty available
  • Composite/steel design creates a lightweight, yet rugged platform for long-term durability
  • Accessories: LED Light Assembly (7160-0096), Screen Support (7160-0501)

Certificates & Testing:

  • RoHS, FCC, CE
  • Vibration/Shock Testing: MIL-STD 810G
  • Docking Mechanism Tested: 10,000 cycles
  • SAE Standard J1455 Crash Test
