Getac S410 Docking Station (Triple RF – SMA)

Getac S410 Docking Station (Triple RF – SMA)

Item #7160-0790-03

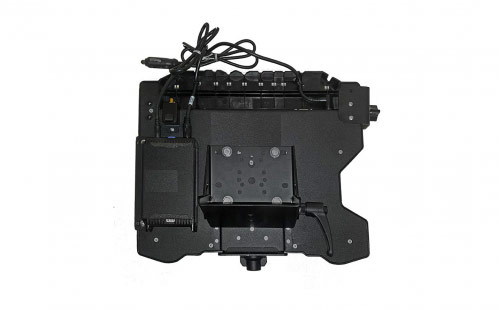

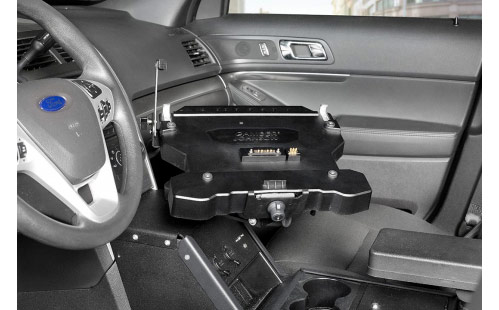

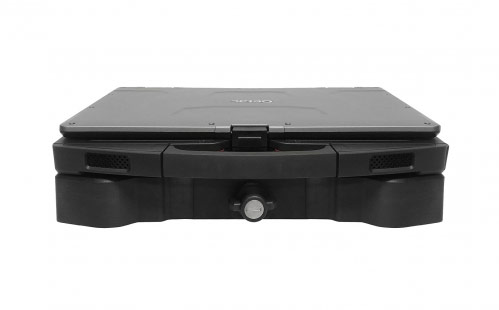

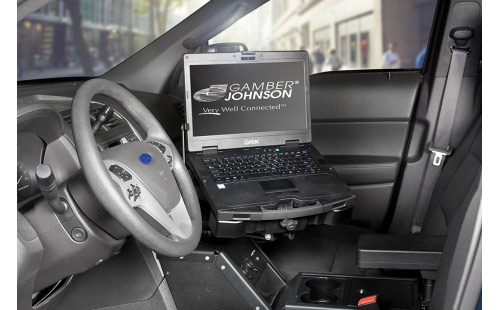

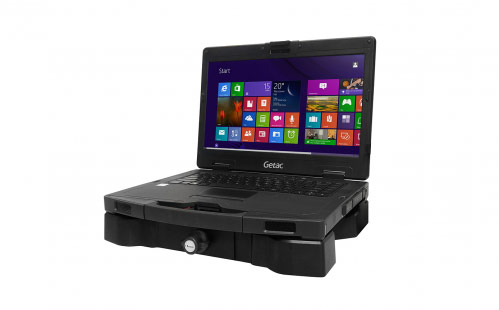

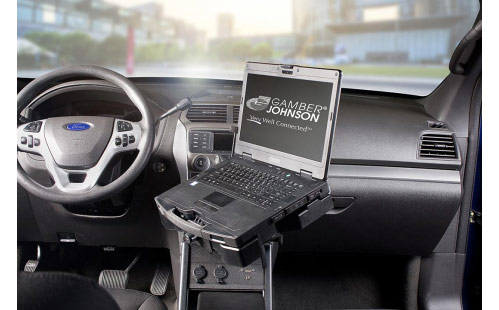

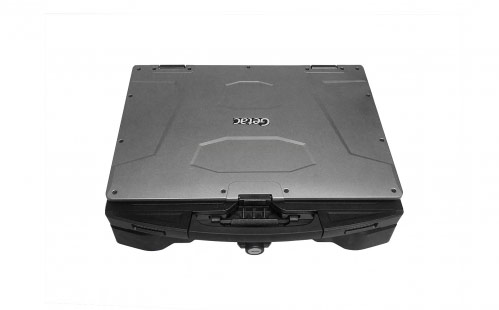

Gamber-Johnson’s S410 docking station is designed to mount a Getac S410 notebook in a fleet vehicle. The docking station is thin and light (4.47 lbs/2.03 kg) and features a spring-loaded connector to ensure connectivity even in the roughest terrain.

Antenna pass-through:

Triple RF (SMA)

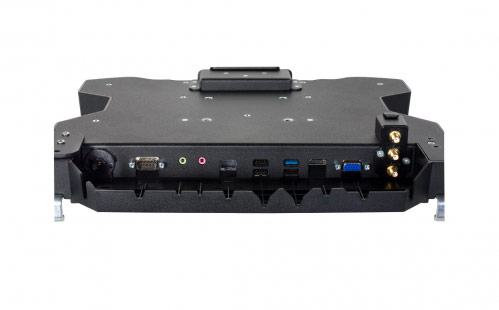

Port replication:

Ethernet – RJ45
USB 2.0, 4 Pin (3)
Serial, D-sub, 9 Pin
VGA D-sub, 15 Pin
RF (SMA) antenna pass-through for GPS, WLAN and WWAN (optional)
USB 3.0, 9 Pin (1)
HDMI 19 Pin
Input voltage – 19 VDC

Power supply:

Not included – must use external Getac 120W auto power adapter (7300-0471)


4.47 lbs. / 2.03 kg

Dimensions :

Height: 12.39″ / 31.47 cm
Width: 13.84″ / 35.15 cm
Depth: 2.90″ / 7.37 cm


  • Small footprint designed to maximize available space.
  • Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system.
  • Rear hooks and guide pins ensure proper alignment and docking connectivity.
  • Spring-loaded docking connector to ensure connectivity in the roughest terrain.
  • Plate draws back into docking station when the computer is docked.
  • Docking station designed to accommodate optional VGA attachments.
  • Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern.
  • Rugged composite/steel construction with black powder coat finish for long-term durabililty.
  • Screen support is included with the dock.
  • Comes with a power supply bracket to attach the Getac power supply (7120-0736) to the bottom of the dock
  •  (sold separately)
  • External power supply sold separately.
  • RoHS, FCC
  • C-Tick
  • MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage)
  • Vibration/shock testing: MIL-STD 810G 514.5
  • Docking mechanism tested: 30,000 cycles
  • SAE Standard J1455 Crash Test
