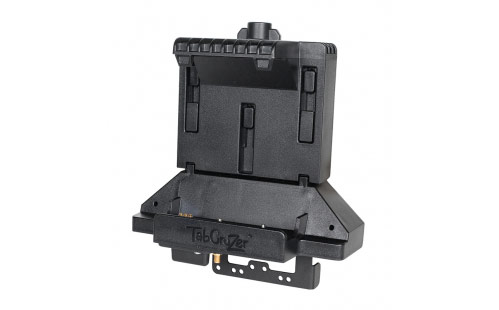

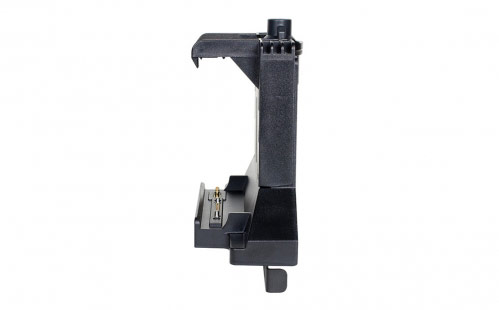

Getac T800 Tablet Docking Station (Triple RF – SMA)

Getac T800 Tablet Docking Station (Triple RF – SMA)

Item #7160-0565-03

Antenna pass-through:

Triple RF Pass-through (SMA)

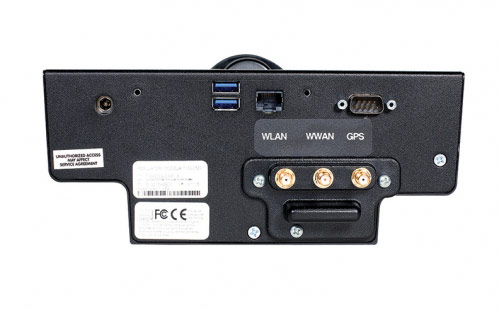

Port replicator:

Ethernet (1) – RJ45
Serial – D-sub 9 pin
Power In – DC
Fully Powered USB 3.0 (2) – 9 pin
Triple RF pass-through – SMA

Weight:

2.40 lbs. / 1.1 kg

Dimensions :

Height: 9.5″ / 24.1 cm
Width: 8.4″ / 21.3 cm
Depth: 3.5″ / 8.9 cm

Features:

  • Designed for the Getac T800 8.1- inch rugged tablet computers
  • Access to all computer function buttons and ports while tablet is docked
  • VESA 75mm and Gamber-Johnson mounting  patterns located on the back of the dock
  • POGO pin style docking connector for easy docking activation
  • Alignment pins guide the computer for easy docking and connectivity
  • Downward-facing I/O ports; cable strain relief system for easy cable management
  • Docking Station design accommodates SnapBack SmartCard & RFID reader and X-Hand Strap (sold separately)
  • Push and Turn lock with key for theft deterrence
    • Insert computer then push down and turn lock to close and dock computer
  • Composite/aluminum design for reduced weight and durability
  • Use External power supply: 90W Lind Auto Adapter (Item No. 15110)

Certificates & Testing:

  • RoHS, FCC, CE
  • Vibration/Shock Testing: MIL-STD 810G
  • SAE Standard J1455 Crash Test
  • Environmental: High/Low temperature – Storage/Operational and Humidity
  • EMI – Electromagnetic Interference
  • Locking and Docking Mechanisms Tested: 30,000 cycles

Power supply:

Not included – must use one of the following external power supplies:

  • Lind 90W auto power adapter (item no. 15110)
  • Lind 12-32V material handling isolated power adapter (item no. 16079)
  • Lind 20-60V material handling isolated power adapter (item no. 16078)
  • Lind 80V material handling isolated power adapter (item no. 16513)
WARRANTY:
  • 3-Year Limited Warranty (printed circuit board, docking connector)
  • Explore our extended warranty program
